General Detail

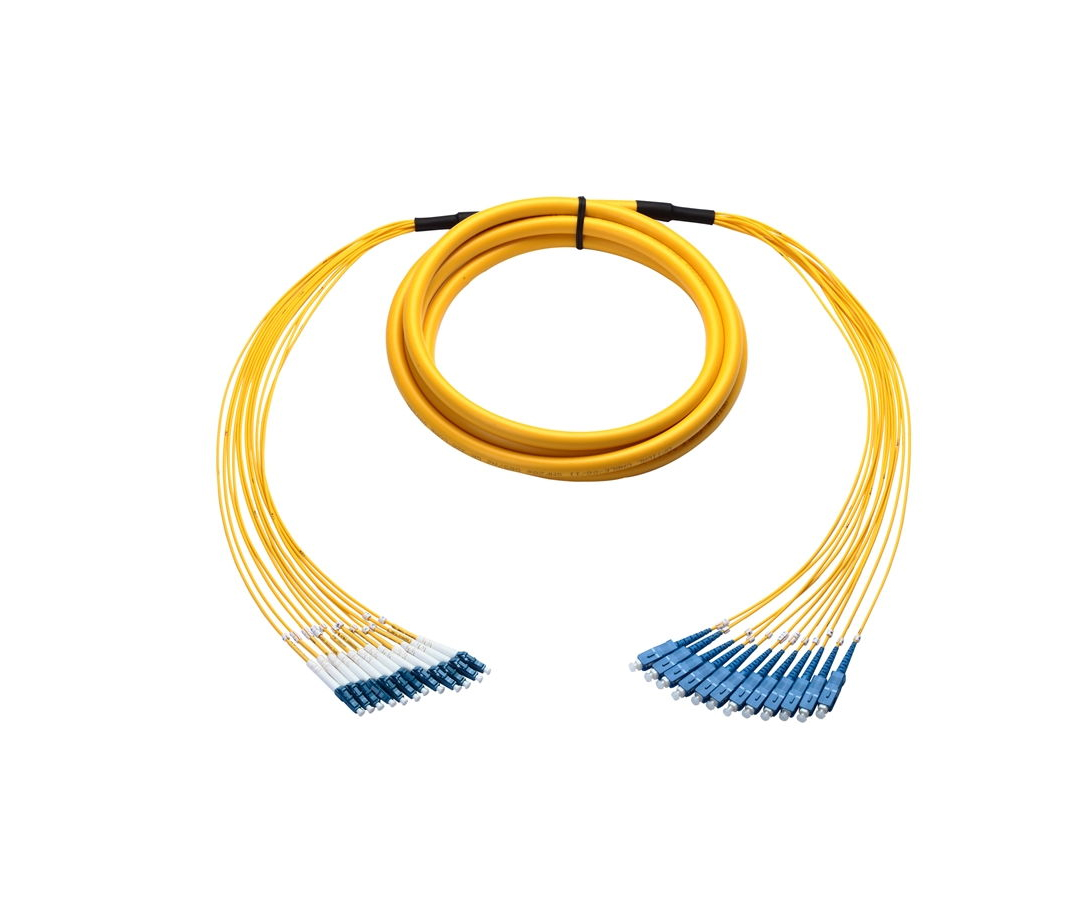

Breakout cable is also known as fan-out cable. As shown in the following image, a breakout cable consists of two or more simplex cables bundled around a central strength member. Each fiber has its own jacket, and all the fibers are packed together inside the same outer jacket. Breakout cables are typically designed with tight buffering and the fiber count is 24 fibers.
- Product Features
- Product Specification
- 24 fiber Breakout Style cables feature our new and exclusive FiberShield design.
- The FiberShield structure employs three times (3x) the amount of the PVC jacket and DuPont Kevlar.
- Protect the multitude of delicate optical fibers located inside the cables.
- This ruggedized cable structure results in a flexible yet robust 4.5mm Breakout Style cable that is 5x stronger than the standard 3.0mm cable.
| Tension（Long Term） | 300 |
| Tension（Short Term） | 500 |
| Crush（Long Term） | 300 |
| Crush（Short Term） | 1000 |
| Min. Bend Radius(Dynamic) | 20D |
| Min. Bend Radius(Static) | 10D |
| Operating Temperature | -10～+60 |
