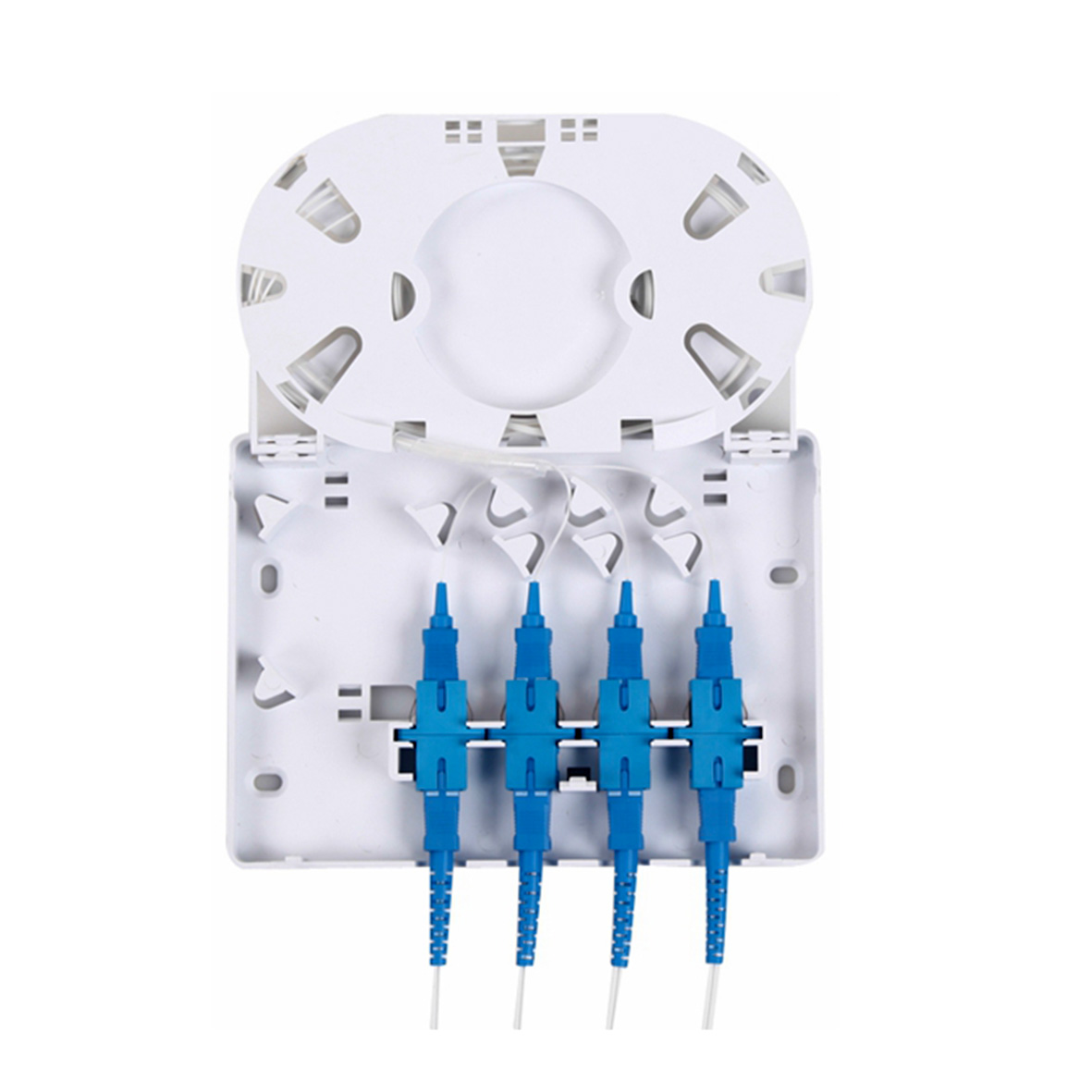

4 Port Outdoor Subscriber Distribution Box

General Detail

This FTTH mini fiber optic terminal box is widely used as a termination point for feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and manage-mant for FTTX network.Can be used indoor or outdoor

  • Product Features
  • Product Specification
  • Made of cold-rolling steel, static spreading-plastic, color and lustre is uniform, elegant appearance, easy for operation
  • Box has pothook, which is convenient to install and dismantle
  • Box is of unique structure, reasonable layout and has adequate room for operation
  • Adjustable clamp seal ring and reinforce configuration, which can adjust different sizes of cables flexibly to make sure the cables are tightly
  • Indoor type is of excellent seal performance, which can prevent water from entering effectively
Working temperature-20°C~+60°C
Relative humidity=<90%(+30°C)
Atmospheric pressure62-106Kpa
Insertion LosslL =<0,3dB (PC), 1L =<0,3dB (APC)
Return LossPL>=40dB (PC), RL>=50dB (UPC), RL>=60dB (APC)
