General Detail

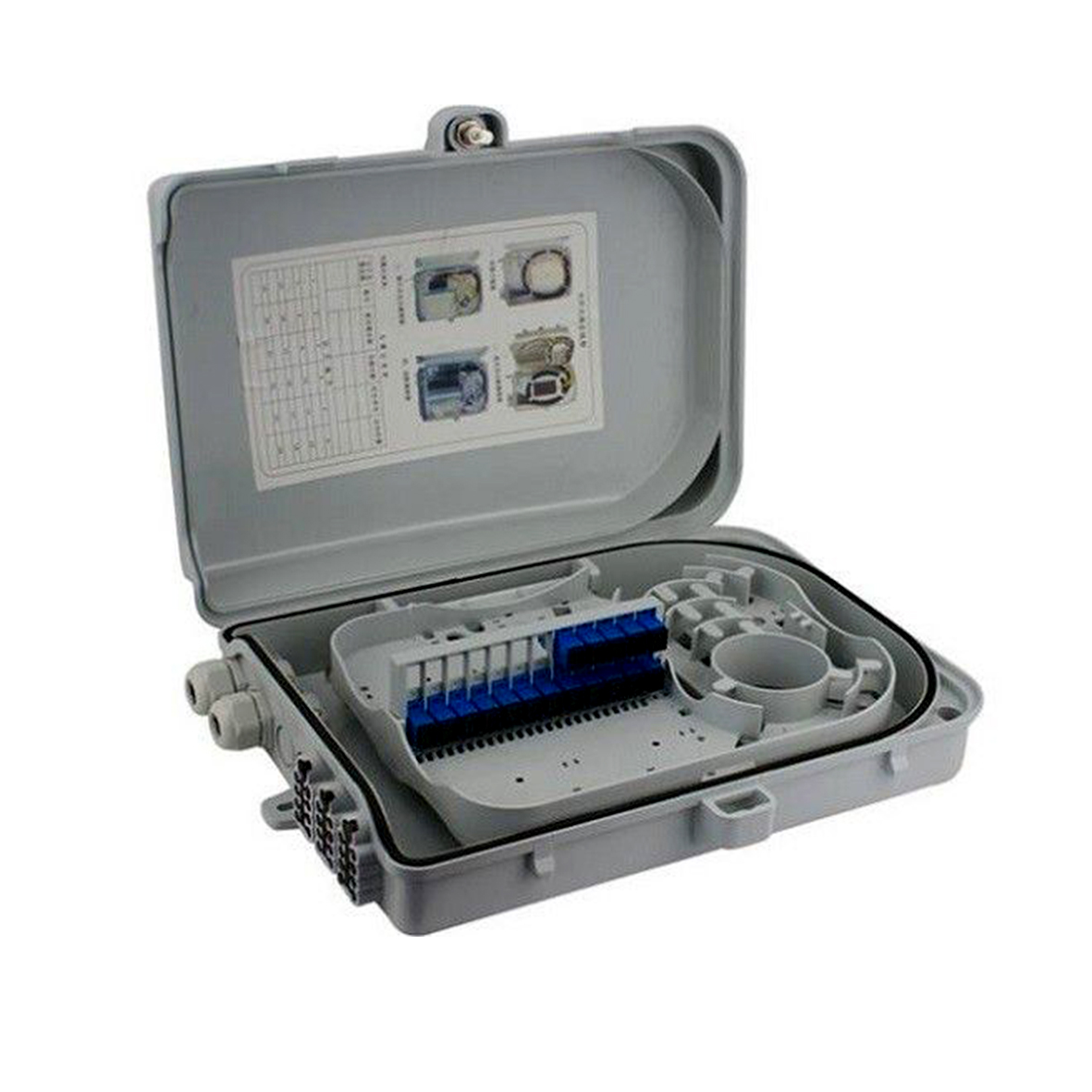

Fiber optic distribution box is used for the distribution connection of cable and fiber optic communication devices. It leads out optic signal from drop cable to pigtails by splicing in the box. It can be used for protective connection of cable and layout pigtails, and fiber optic termination of fiber access network. It is suitable for outdoor, corridor, weak current silo or connection points of vilas, for the splicing, storage and distribution of local cable or drop cable, with capacity of 48 cores
- Product Features
- Product Specification
- High strength composite material (SMC) or engineering plastic injection molding, good mechanical performance, elegant appearance, sturdiness and durability.
- Suitable for indoor and outdoor , wall-mounted, pole, aerial installation.
- Splitter type: insertion splitter 1: 4/6/8/12/24/36/48 Port
- Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.
- FC,SC,and LC adapters available, modular design, convenient for fixation and maintenance.
- Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.
- The mark is clear on each fiber connection and distribution .
- The door opening angle is greater than 120 degree for easy operation and maintenance.
- The splice tray can be taken down and put on the bench for splicing, convenient operation.
- The redundant fiber is wound and protected.
| Dimension( L×W×H ) | 420mm×320mm×133mm |
| Weight(kg) | 3.2kg |
| Function | Cable terminal,passive splitter |
| Adaptor type | SC |
| Max ratio | 1:48 |
| Max capacity(F) | 48 |
| Material | ABS |
