General Detail

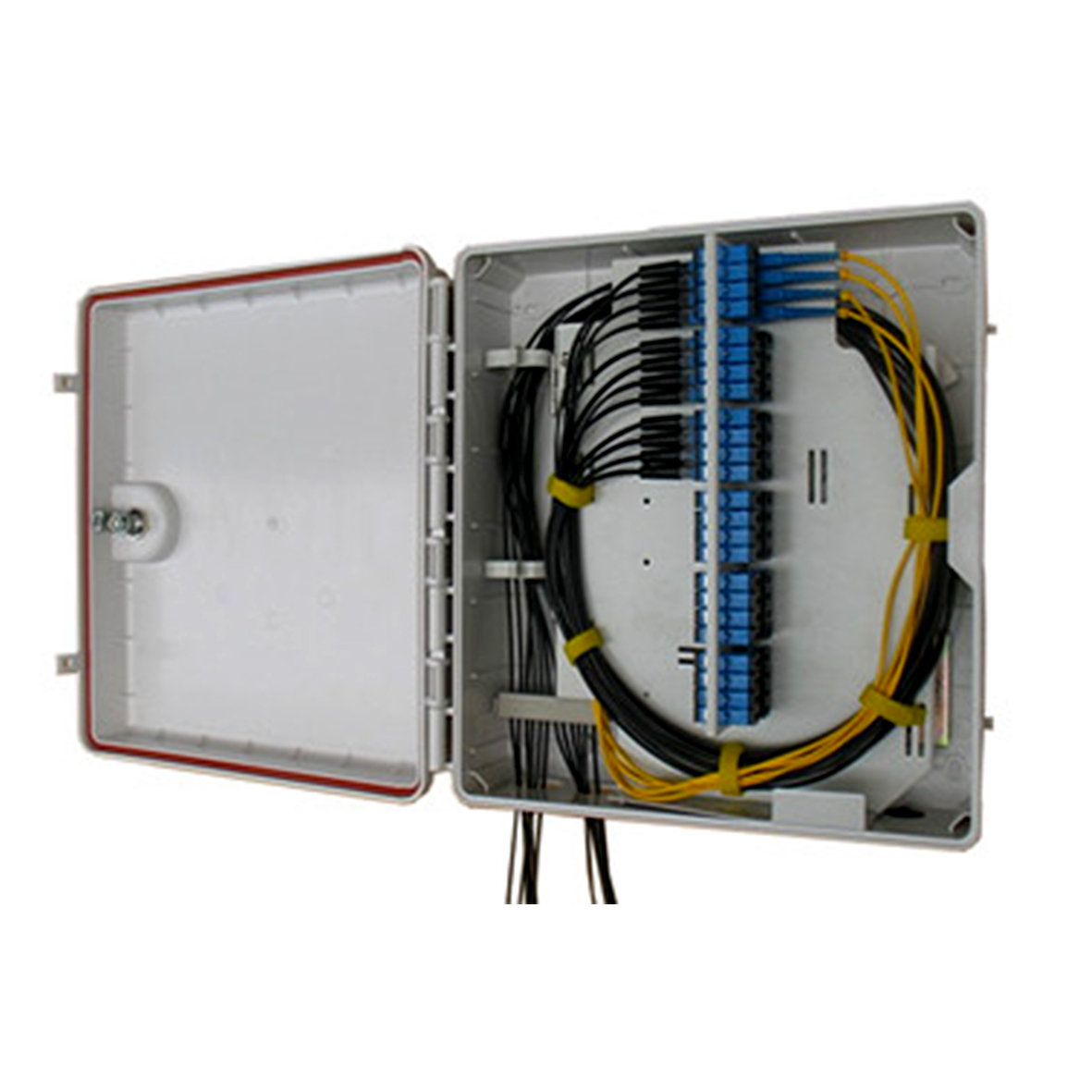

This type optical distribution box is designed to seal with screws and buckles. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage. Max. Capacity is 96 Fibers.
- Product Features
- Product Specification
- Water-proof design with IP-65 Protection level.
- Integrated with flap-up splice cassettes with splitter tube holder
- Maximum 96F splice capacity
- Plug-and-play installation, easy for maintenance and expansion.
- Fiber bend radius control more than 40mm.
- 180 degree access with buckled lock structure.
- 1 mid- span cable entrance (10-16.5mm) for uncut cable, 2 reserved cable entrance for distribution cable (8-16.5mm).
| Dimension(cm) | 56x 48x 26.5 |
| Weight(Kg) | 14 |
| Max capacity | Splice 96 Fibers (4tray*24F) |
| Color | Grey / black |
