General Detail

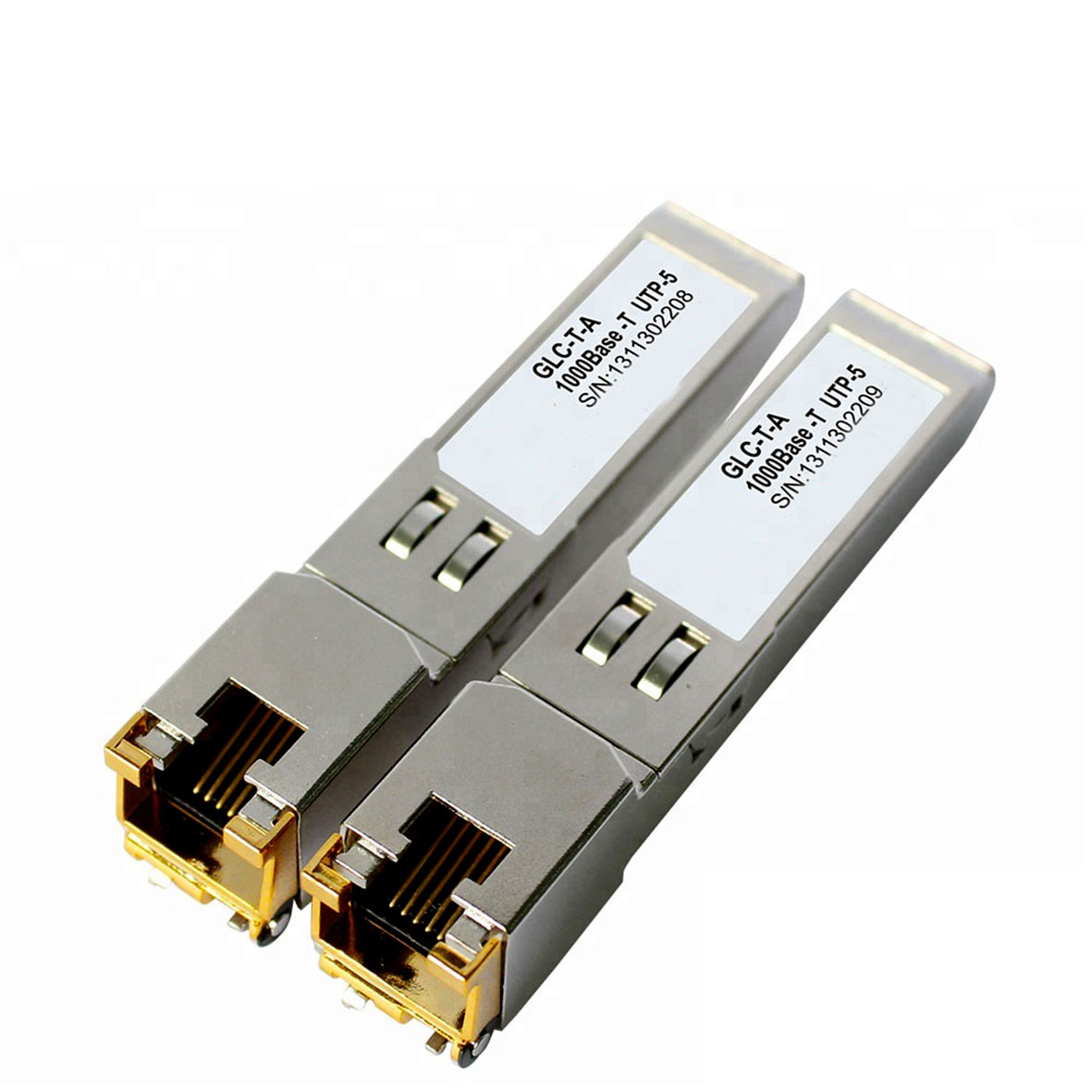

Up to 1.25 GB/s bi-directional data links Hot-pluggable SFP footprint. Extended case temperature range (0°C to +70°C) Fully metallic enclosure for low EMI. Low power dissipation (1.05 W typical). Compact RJ-45 connector assembly. Access to physical layer IC via 2-wire serial bus. 1000 BASE-T operation in host systems with SERDES interface 10/100/1000Mbps compliant in host systems with SGMII interface
- Product Features
- Product Specification
• Card type or independent structure, applied to 2.5U centralized management chassis
• 8/10-bit digital code and non-compressed video transmission
• Supports any high-resolution video signal
• 5Hz-10MHz video channel
• Compatible with PAL, NTSC, and SECAM video systems
• With APC circuit, constant input optical power, and large dynamic range
• Power supply and other parameter status indication, which can monitor system operation
| Maximum Data Transfer Rate | 1.25 Gbps |
| Type | Copper |
| Connection Type | RJ45 Connector |
| Max Transfer Distance | 100 m (328 ft) |
| MTBF | 4,655,371 hours |
| Power Consumption | Less than 1.3 Watts |
