General Detail

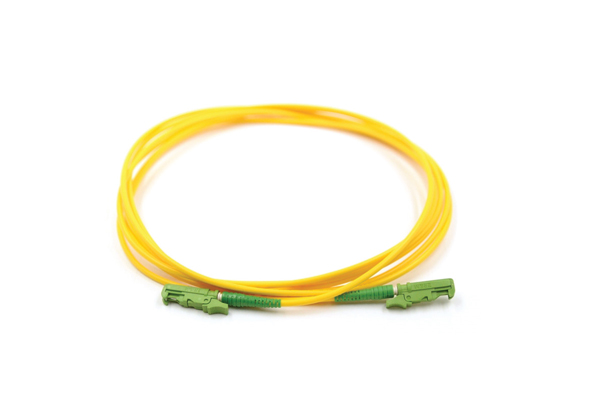

The E2000 fiber patch connector is one of the newly developed fiber optic connectors. This connector features a spring-loaded cover that protects the ferrule from dust and scratches. The E2000 patch connector has a structure similar to the SC connector, but it is smaller in size than the SC connector. We offer both single-mode and multimode E2000 patch cables, available in UPC and APC polish types.
- Product Features
- Product Specification
- E2000 Simplex or Duplex
- Housing and plastic boot with UL rating in various colors, available in 0.9 mm, 2.0 mm, or 3.0 mm thicknesses
- Precision mechanical dimensions
- Zirconia ferrule with high concentricity, available in PC or 8-degree APC diameter (125-128um)
- Single mode, Multimode, and Angle PC
- Available in multi-piece or one-piece types
- All components comply with ROHS
| Insert Loss | Single mode ≤0.3dB |
| Multi mode ≤0.3dB | |
| Return Loss | Single mode PC ≤-50 dB; UPC≤-55 dB; APC≤-60dB |
| Multi mode ≥20dB | |
| Color | Single mode Yellow |
| Multi mode Orange | |
| Duplicated | ≤0,1dB |
| Interchangeable | ≤0.2dB |
| Inserts pulls out the number of times (time) | ≥1000 |
| Working Temperature | -40~+80 |
