General Detail

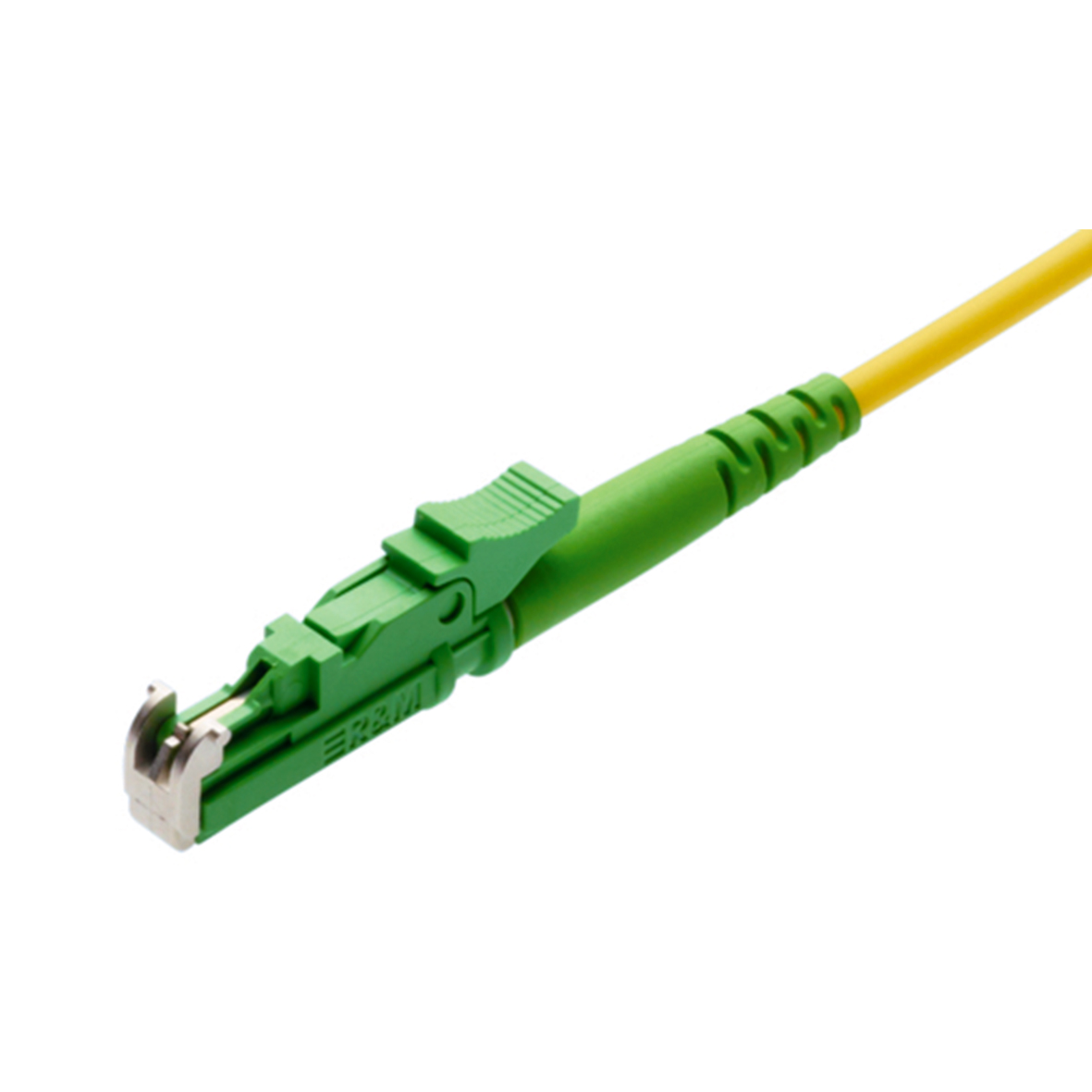

E2000 fiber optic connector and E2000 products are more and more used in the communication filed because it’s good performance. E2000 series include a wide range of different styles. Although E2000 is rather expensive than most of the other types fiber connectors, it indeed incorporate much innovative technology to improve the products performance, one of them is the E2000 featured Spring-loaded protective cap which provide increased safety protection.
- Product Features
- Product Specification
- Low insertion loss and high reflection loss
- Good durability: >1,000 times
- Good exchange ability
- Environmentally stable
- High temperature stability
| Fiber diameter | 9/125um |
| Insertion loss | APC <0.3dB |
| Return loss | APC >60 dB |
| Insert–pull test | (1000 times) <0.3 dB |
| Interchange | <0.2 dB |
| Operating temperature | -40ºC ~ +80ºC |
| Anti-tensile force | 90N |
| Repeatability | <0.1dB |
