General Detail

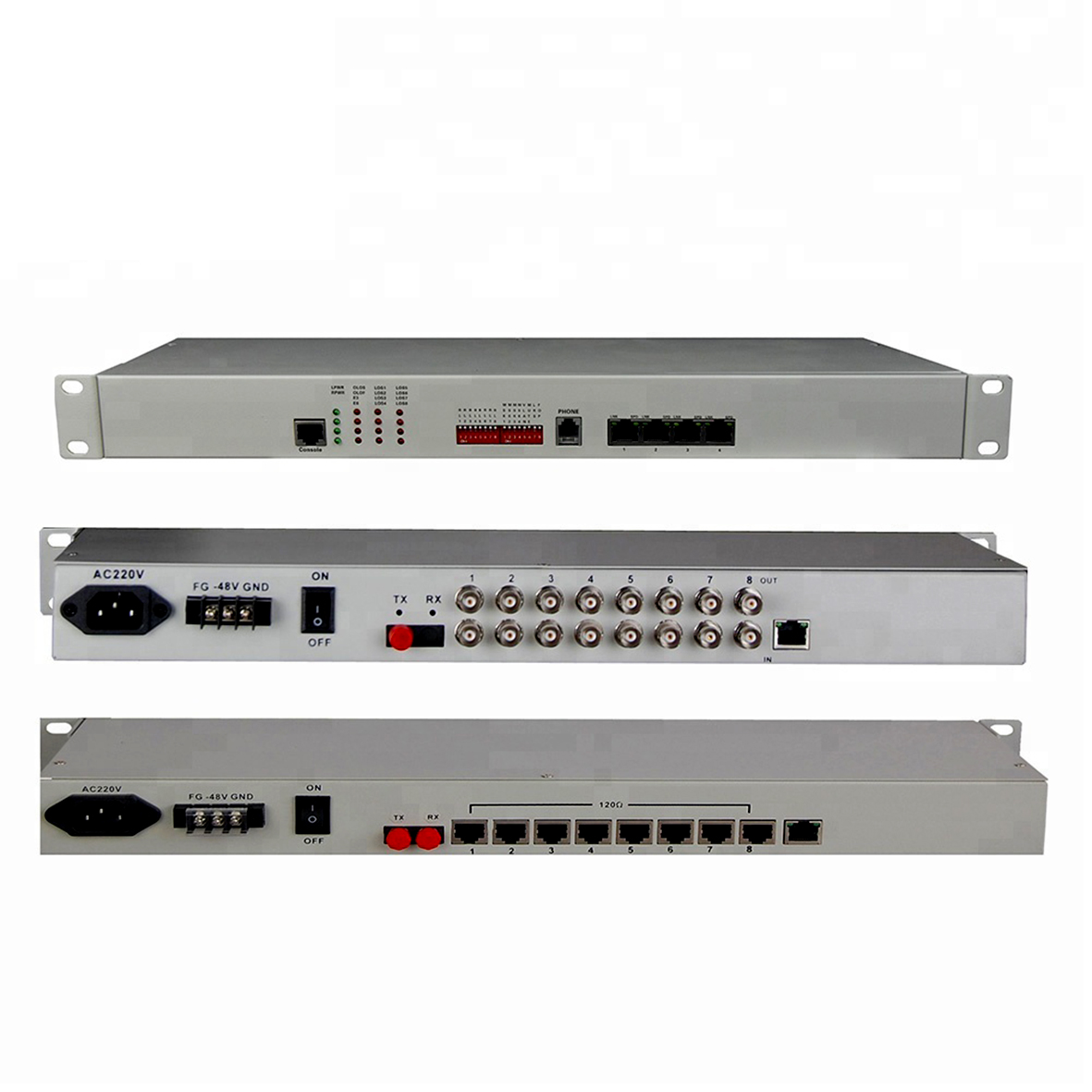

This device provides an E1 1-8Channel interface, 1Channel digital hotline phone PCM (optional). It is very flexible. It has an alarm function. The operation is reliable, stable, and has low power consumption, high integration, and a compact size. This device provides a main optical fiber interface and a backup optical fiber interface, with the Dual Optical Port Backup function ensuring that operations will never be interrupted.
- Product Features
- Product Specification
- High-integration, modularized design.
- Complete clock function, provide clock tracking and holding functions.
- Clock resource can select line clock, external clock or free-run.
- Network management can realize major functions included: configuration alarm, performance, maintenance and security which satisfy with ITU-T suggestions.
- Provide Console interface, support local management via serial port on PC
| Operating temperature | 0~50 deg. |
| Deposited temperature | -20~70 deg. |
| Relative humidity | <95% (on-condensing) |
| Power supply mode | AC220V, AC110V or DC-48V |
| Power consumption | <7W |
| Work wave length | 1310nm |
