General Detail

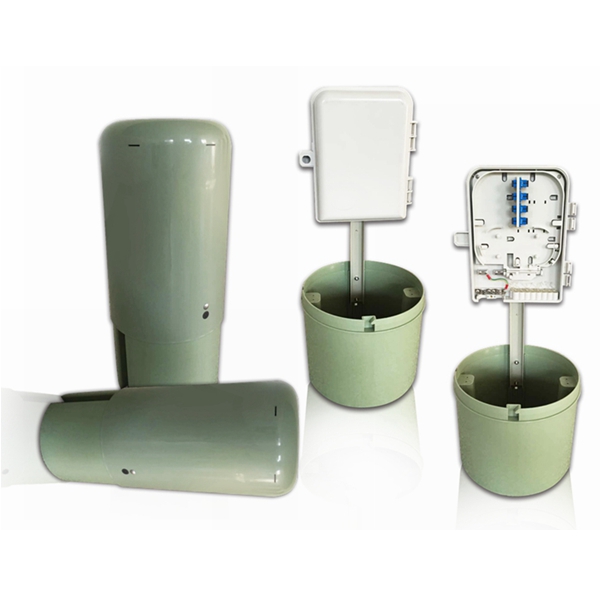

FOP-16A fiber optical pedestal is designed specifically for the housing of fiber access terminals to provide an additional protection to the fiber passive equipment installed, the green environment-friendly appearance makes itself perfectly suitable for FTTH
- Product Features
- Product Specification
• Waterproof design with IP-55 protection rating.
• Self-locking cover mechanism, with an additional padlock.
• Removable cable entry plate with 3 * 50mm cable entries, better moisture resistance performance.
• Spacious interior with a universal mounting bracket, suitable for all types of FAT less than 230mm.
• Made with high-strength industrial-grade engineering plastic, better performance in anti-aging and UV resistance.
• Stainless steel metal frame and anti-corrosion components.
• 360-degree air vent to maintain a good ventilation system.
• Smart design in packing, saving up to 30% shipping cost.
| Material | Non-metallic Light |
| Field Size | H*D(mm) 550*230 |
| Max Capacity | FAT(ODP) Ports 12 Ports PLC 1x8(SC) |
| Shipping Size | H*D(mm) 560*240 |
| Weight | 3.0kg |
| Color | Light Green |
