General Detail

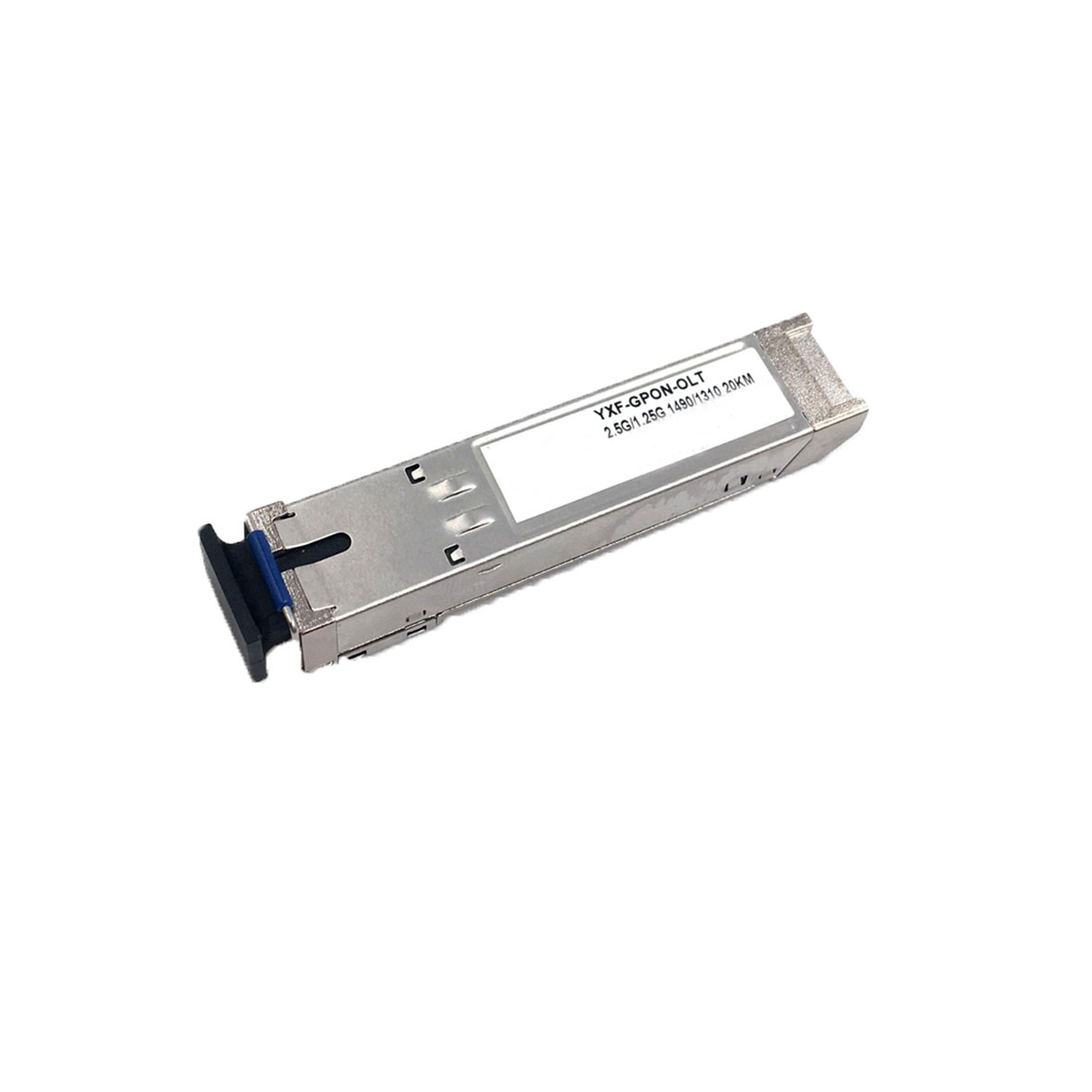

Single Fiber Transceiver with single mode SC receptacle 1490nm continuous-mode transmitter with DFB laser. 1310nm burst-mode receiver with APD-TIA Single 3.3V power supply. Reset burst-mode receiver design. Burst mode signal detect output which is LVTTL compatible Burst mode received signal strength indication (RSSI) output 20Km Reach 28dB link budget. Complies with ITU-T G984.2 Class B+. Digital diagnostic interface compliant with SFF-8472 Rev 9.4 Complies with RoHS directive. Operating case temperature: Standard: 0 to +70°C
- Product Features
- Product Specification
- Single Fiber Transceiver with single mode SC receptacle 1490nm continuous-mode transmitter with DFB laser
- 1310nm burst-mode receiver with APD-TIA Single 3.3V power supply
- Reset burst-mode receiver design
- Burst mode signal detect output which is LVTTL compatible Burst mode received signal strength indication (RSSI) output
Supported Media | Single-mode Fiber |
Connector Type | SC/UPC |
TX Wavelength | 1490nm |
RX Wavelength | 1310nm |
Tx power range | 3 to 7 dBm |
Rx power range | -12 to -30 dBm |
Downstream Data Rate | 2.5 Gbps |
Upstream Data Rate | 1.25 Gbps |
Cable Distance | 20 Km |
