General Detail

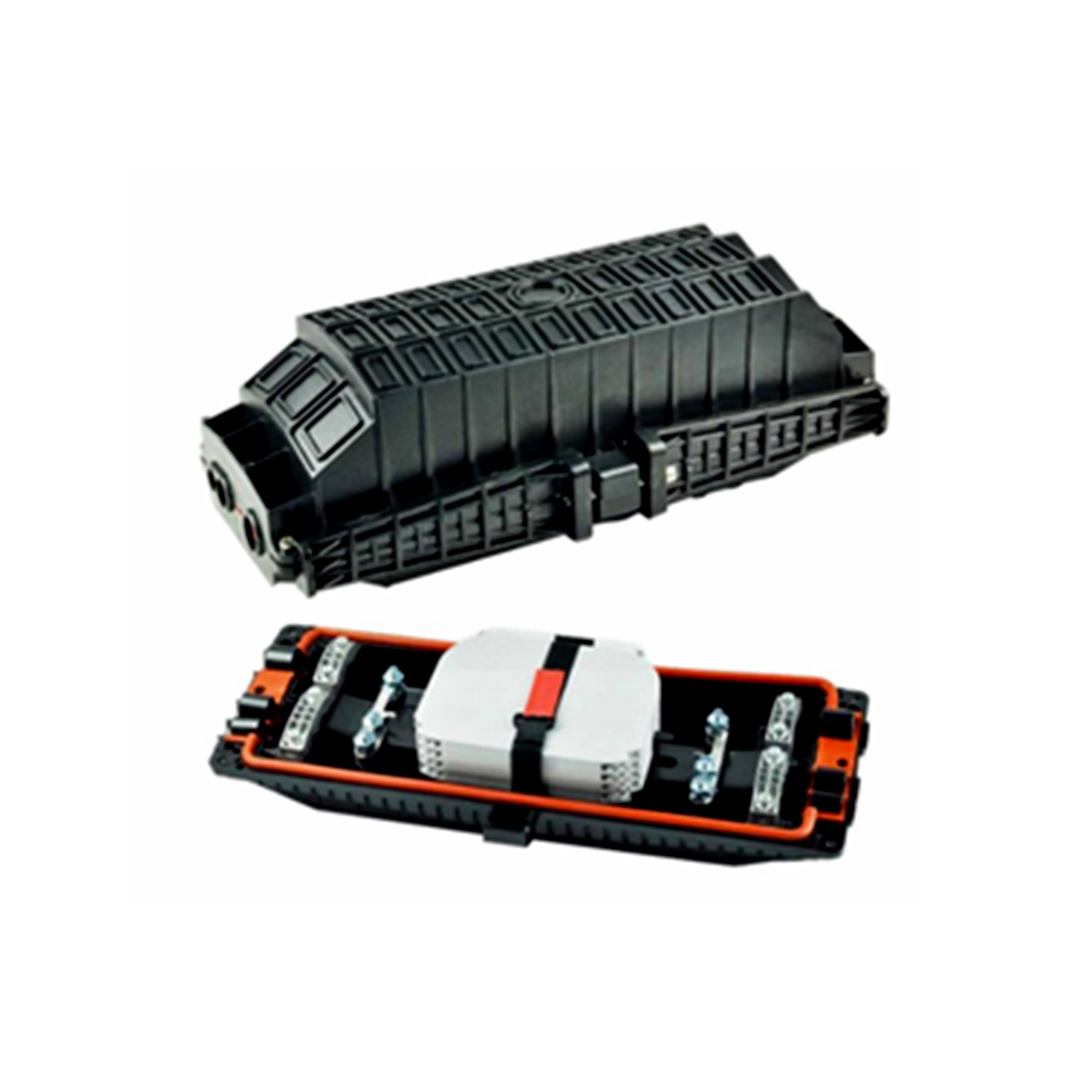

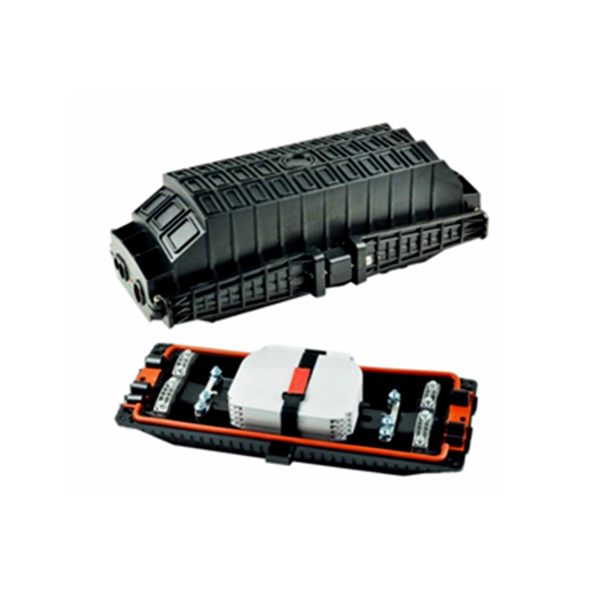

The IM3A Inline Type Fiber Optic Splice Closure (FOSC) is a mechanical seal designed for reusable applications. It allows easy access for installation, maintenance, and future expansion. It provides excellent sealing against water ingress and harsh environments. The hinged splice tray allows for easy expansion without disturbing spliced fibers. Compatible with standard types of normal fiber optic cables.
- Product Features
- Product Specification
- The casing of fiber optical splice closures is made of quality engineering plastics.
- Good performance of resisting wild environment and intensive climate changes. The protection grade reaches IP66.
- The Fiber Optic Splicing Enclosures are applicable to ribbon optical cables and common Fiber Optical Cables.
- The splice trays inside are turn-able like booklets. Adequate curvature radius for fiber winding 40mm. Each optical cable and fiber can be operated individually.
- The elastic rubber seal rings inside the Fiber Closure have good sealing and sweat-proof performance.
- The casing can be opened repeatedly without air leakage. No special tools are required. The operation is easy and simple.
| Outside dimension (LxWxH) | 390×210×120mm |
| Weight | 1900g-2100g |
| Number of inlet/outlet ports | 3 ports on each side |
| Diameter of fiber cable | 7 – 16 (mm) |
