General Detail

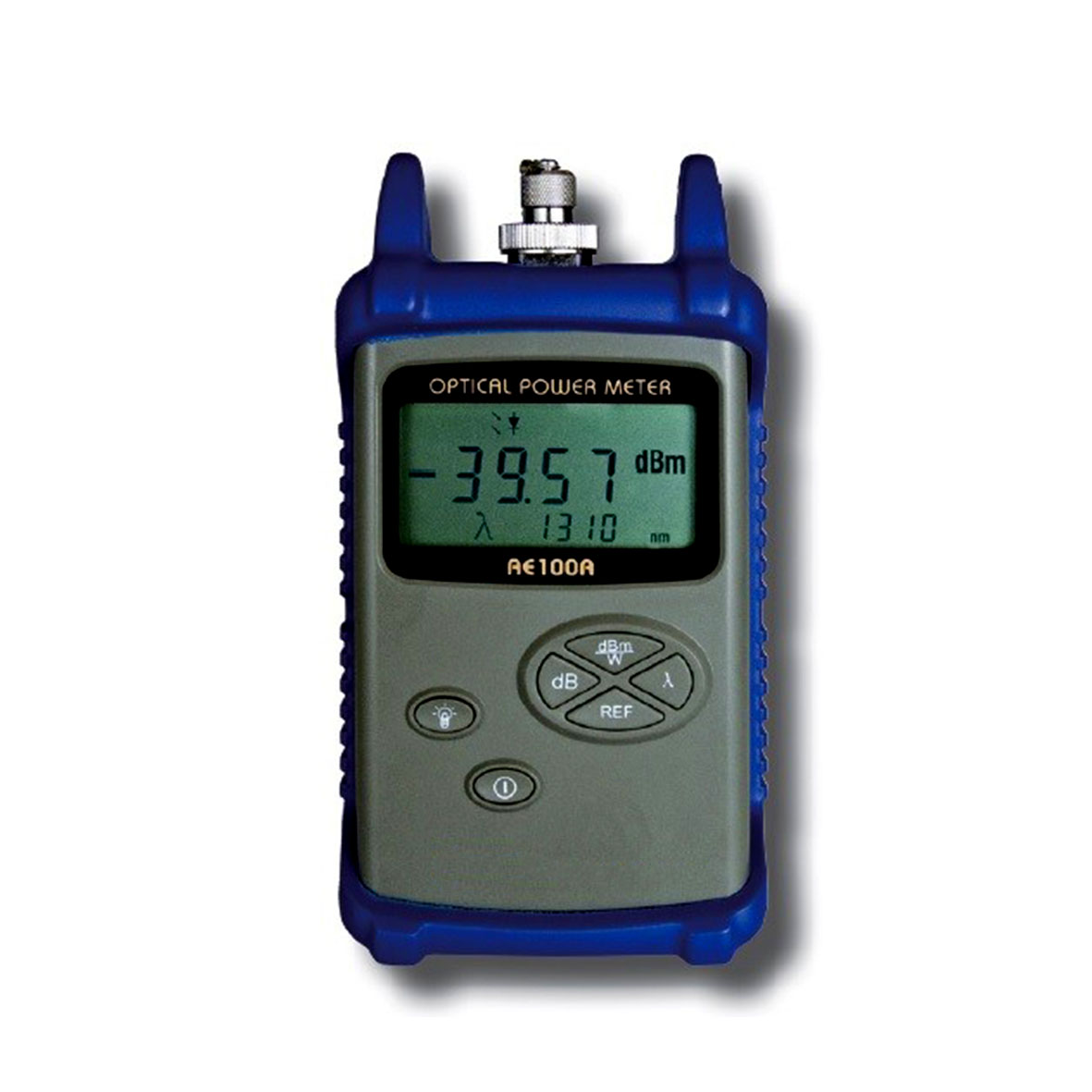

Handheld Optical Power Meter is a self-developed test instrument. For the installation, operation and maintenance of fiber-optic network is designed as a precise, durable, convenient, portable test instrument. Smart appearance with the backlight, auto-shutdown features, the wide range of optical power testing, test the accuracy of precision as well as a common interface design.
- Product Features
- Product Specification
- The most compact in Size, ideal for field operation
- Power measurements in dBm and mw
- Energy-saving design, 10 minutes Auto-o function
- Power measurements in dBm or mw
- Low battery consumption, more than 40 hours continual operation time for three 1.5V alkaline batteries
- 10 minutes Auto-o function
| Wavelength(nm) | 800~1700nm |
| Calibrated Wavelength(nm) | 850,1300,1310,1490,1550, 1625nm |
| linearity(dB) | =<±0,1 |
| Resolution(dB) | ±0.05 |
| Power supply | AAA 1.5V battery(3pcs) ( not included ) |
| Optical connector | 2.5mm universal interface for ST/SC/FC |
| Auto-off time | 10mins |
| Battery continuous operation | 40 |
| Working temperature | -10 ~ +60 |
| Storage Temperature | -25 ~ +70 |
