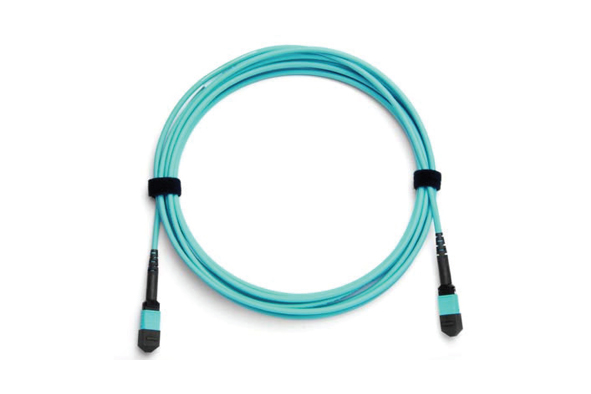

MTP Fiber Patch Cables

General Detail

MTP is an upgraded version of MPO. The MTP patch cables allow high-density connections between network equipment in
telecommunications rooms. This cable uses a push-pull latch mechanism for easy and intuitive installation and removal.

  • Product Features
  • Product Specification

• Space-saving, 24 fibers in a single connector
• High-density connections between network equipment in telecommunications rooms
• Easy installation and removal with push-pull latch
• Future-proof technology makes this a great long-term investment

Insert LossSingle mode ≤0.3dB
Multi mode ≤0.3dB
Return LossSingle mode PC ≤-50 dB; UPC≤-55 dB; APC≤-60dB
Multi mode ≥20dB
ColorSingle mode Yellow
Multi mode Orange
Duplicated≤0,1dB
Interchangeable≤0.2dB
Inserts pulls out the number of times (time)≥1000
Working Temperature-40°C~+80°C
