General Detail

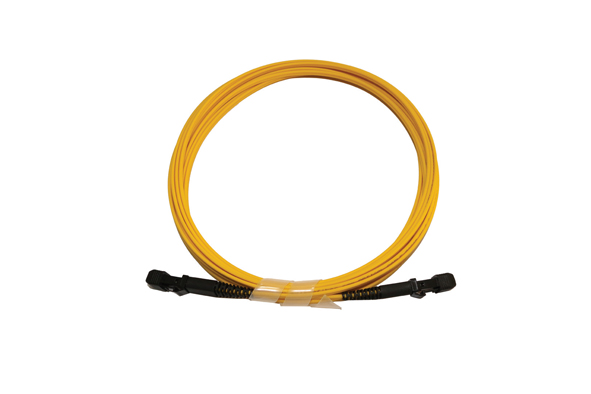

MT-RJ stands for Mechanical Transfer Registered Jack. Because MT-RJ is small in size, this cable is very popular.
MT-RJ patch cables are commonly used for networking applications. Its size is slightly smaller than a standard telephone jack and easy to operate.
The name MT-RJ comes from the MT and RJ connector types, from which the MT-RJ fiber optic connector was developed.
MT-RJ fiber patch cables feature dual fiber connections, meaning two glass connections in one MT-RJ fiber optic connector.
Another special point is that MT-RJ has a plastic housing and plastic ferrule. There are MT-RJ fiber optic patch cables in female type and male type; the difference is that the MT-RJ male type has two pins on each MT-RJ fiber optic connector.
- Product Features
- Product Specification
• All patch cables have undergone quality inspection at 1300nm (Multi-mode), 1550nm (Single-mode). Data provided.
• All connectors have been visually inspected at 400x.
• The series has undergone quality inspection at 850-1300nm (Multi-mode), 1310-1550nm (Single-mode). Data provided.
• This series comes with interferometer reports.
• Small order quantities are accepted.
• Connector configurations: SC, FC, LC, ST, MTRJ, etc.
• Cable jackets: LSZH, PVC jackets upon request.
• Cable diameter: 0.9mm, 2.0mm, 3.0mm
| Duplicated | ≤0,1dB |
| Interchangeable | ≤0.2dB |
| Inserts pulls out the number of times (time) | ≥1000 |
| Working Temperature | -40~+80 |
