General Detail

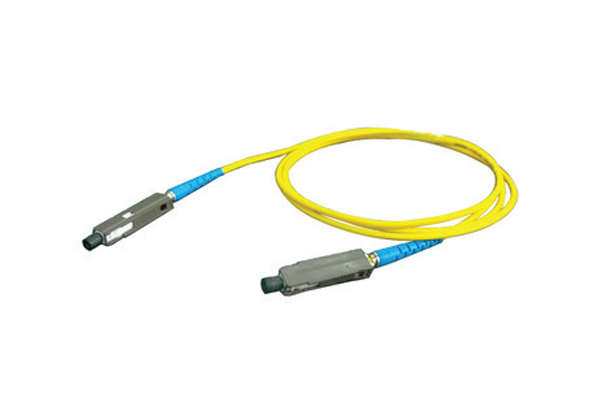

The MU fiber patch cable features a push-pull design. MU fiber patch cables are fully compatible with NTT-MU products,
and the MU connector resembles a mini SC connector with a 1.25mm ferrule. This type of patch cable is popular in Japan.
MU fiber patch cables offer the following features: Easy to push and pull; High packing density, Excellent optical performance, and have
a wide range of applications.
- Product Features
- Product Specification
• Small size and lightweight
• Push-pull operation
• High optical performance
• High-quality zirconia ferrule
• Telecommunications network
• Cable diameter 2.0 mm or 0.9 mm
• Complies with Telcordia GR-326-CORE specifications
| Insert Loss | Single mode ≤0.3dB |
| Multi mode ≤0.3dB | |
| Return Loss | Single mode PC ≤-50 dB; UPC≤-55 dB; APC≤-60dB |
| Multi mode ≥20dB | |
| Color | Single mode Yellow |
| Multi mode Orange | |
| Duplicated | ≤0,1dB |
| Interchangeable | ≤0.2dB |
| Inserts pulls out the number of times (time) | ≥1000 |
| Working Temperature | -40~+80 |
