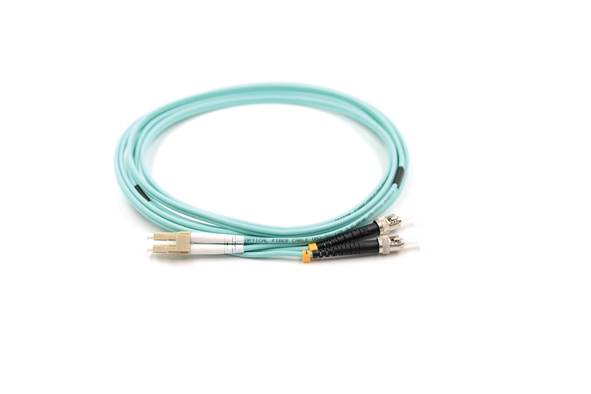

OM3 LC ST Multimode Duplex Fiber Patch Cable

General Detail

Here’s the translation with HTML tags: ```html We provide OM3 multimode LC to ST 10Gigabit optical fiber cables that can transmit 10G signals. This 10Gig optical patch cable
is designed to meet these requirements. This LC-ST duplex 10G optical patch cable uses OM3 50/125 aqua fiber glass
and is typically used in 10 Gigabit Ethernet. Our 10Gig optical patch cable supports bandwidth as specified
by IEEE802.3z, which is intended for Gigabit Ethernet. The duplex 10Gig optical patch cable is manufactured according to
TIA-492AAAC-A standards for OM3 cables, and the common cable color is in line with the aqua standard. ```

  • Product Features
  • Product Specification

  • Supports 10 Gigabit data transmission speed
  • Connectors use UPC polish
  • Ceramic ferrule provides alignment
  • OM3 50/125 optical fiber glass
  • Used to connect patch panels and/or network devices requiring 50/125 multimode cable
  • Fully compliant with international industry standards
  • Meets high bandwidth requirements
  • Used with LED and VCSEL laser light sources
  • Compatible with 50/125 LED-based multimode fiber applications

ColorAqua
Length2.00 Meter
Jacket RatingStandard Non-Rated
Attenuation at 1300 nm1,0 dB/km
Vendor1.0 dB/km
Weight0,034 kg
Buffer MaterialPVC
Buffer OD900 μm
Crush Resistance750 N/cm
Impact Resistance1,000 cycles
Flex Resistance5,000 cycles
Operating temperature-20°C to +70°C
