General Detail

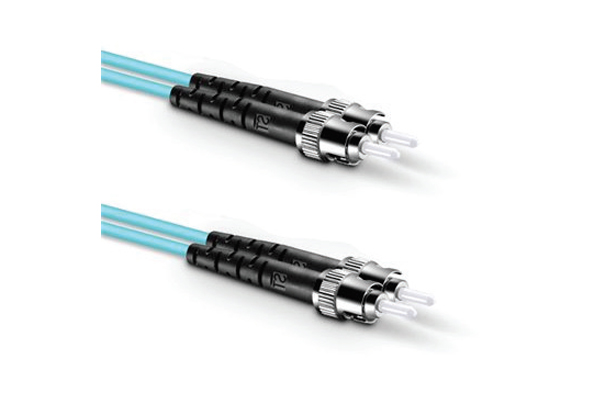

We provide ST to ST 10Gigabit OM4 multimode fiber optic cables that can transmit 10G signals. This 10Gig fiber optic patch cable
is designed to meet these requirements, this ST-ST 10G duplex fiber optic patch cable uses OM4 50/125 aqua glass fiber
and is typically used in 10 Gigabit Ethernet. Our 10gigabit fiber optic patch cables support bandwidth as specified
by IEEE802.3z for gigabit ethernet. The 10gig duplex fiber optic patch cable is manufactured in accordance with
the TIA-492AAAC-A standard for OM4 cables, and the common cable color is aqua as per the standard developed by Lucent technology.
- Product Features
- Product Specification
• Supports 10 Gigabit data transmission speed
• Connector uses UPC polish
• Ceramic ferrule provides alignment
• OM4 50/125 optical fiber
• Used to connect patch panels and/or network devices that require 50/125 multimode cables.
• Fully compliant with international industry standards
• Meets high bandwidth requirements
• Used with LED laser sources and VCSEL
• Compatible with 50/125 LED-based multimode fiber applications
| Polish Type | UPC to UPC |
| Insertion Loss | ≤0,3dB |
| Attenuation | 850nm 3.0 dB/km |
| Operating Temperature | -40~75 degrees Celsius-40~75°C |
| Storage Temperature | -45~85°C |
| Wavelength | 850/1300nm |
| Return Loss | ≤20dB |
| Minimum Bend Radius | 7,5 mm |
| 100G Ethernet Distance | 100m at 850nm |
