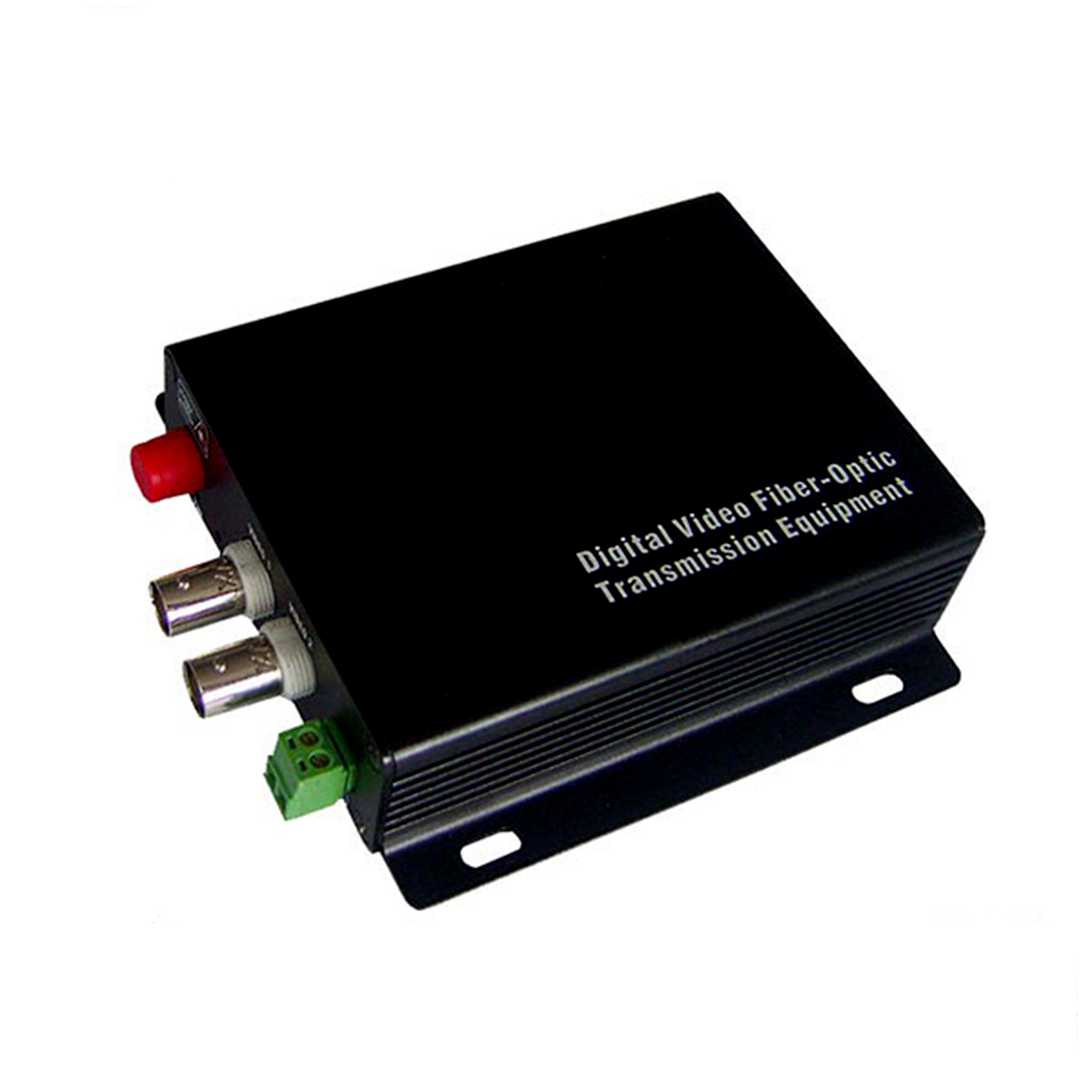

General Detail
Digital sampling of 8-bit video signal. High-speed synchronous digital transmission technology. Modular structure design (audio card and data card for optional configuration). Super optical dynamic range, no adjustment needed. Status indication for power supply, optical signal, and video. No electromagnetic interference, radio frequency interference, or ground current. Secure transmission guaranteed in harsh electromagnetic environments.
- Product Features
- Product Specification
- Power supply and other parameter state indication, which can monitor the operation of system
- Industry-grade design and modularization design make the equipment reliable and flexible
- Can automatically restore the fuse of power supply
- Full built-in power supply and the appearance design of shell is unique
| Video I/O Impedance | BNC 75(ohm) nonbalanced interface |
| Video I/O Voltage | Typical Peak -1Vpp. |
| Video Bandwidth | 8MHz |
| Video Digital Bid Width | 8/10 bits |
| Differential Gain | <1% |
| Differential Phase | <1% |
| Field Tilt | <0,5% |
| SNR | >65dB |
| Connectors | BNC |
