Optical Dome Splitter Closure

General Detail

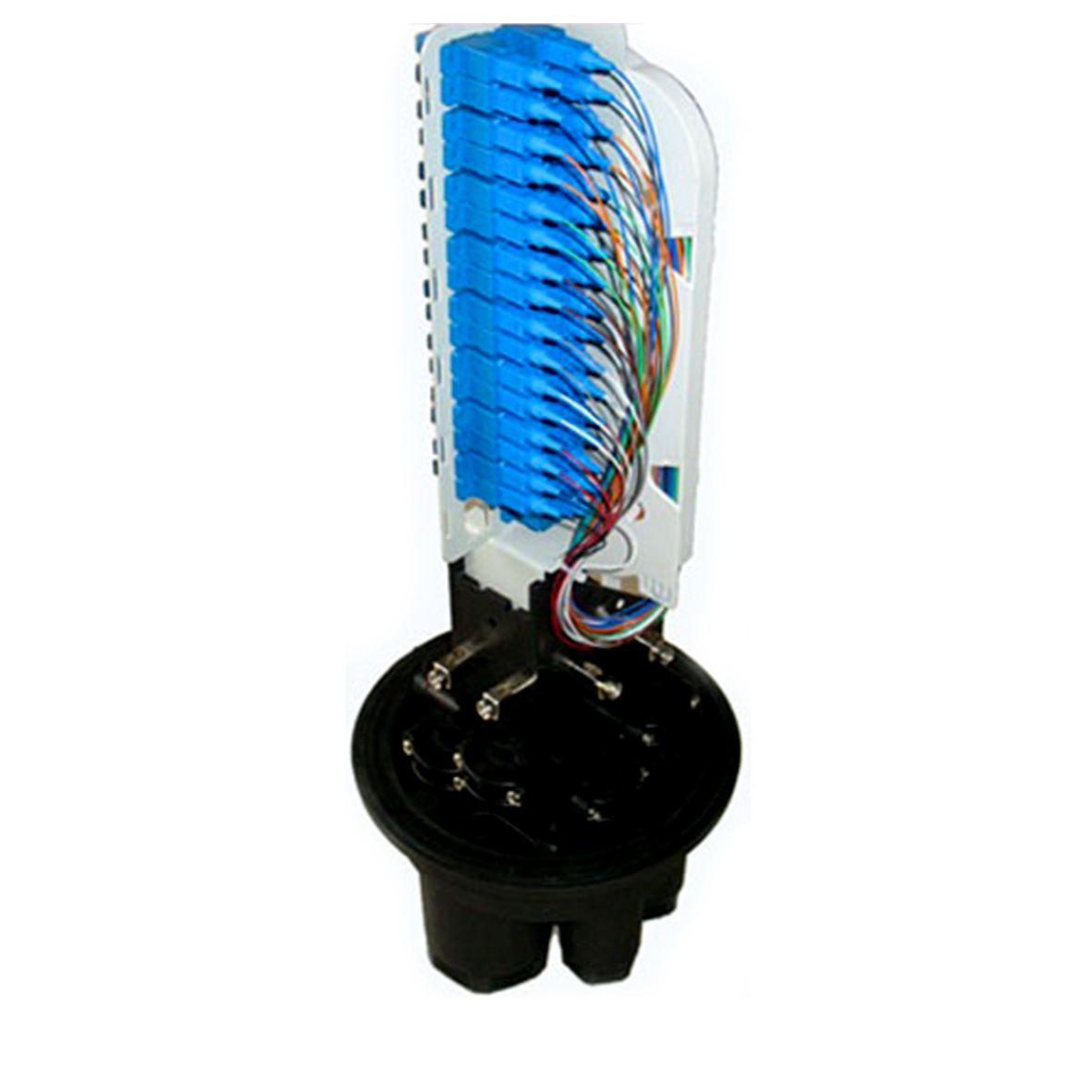

The FOSC series adopts high-strength and corrosion-resistant modified MPP plastic, so its cover has a longer lifespan and excellent sealing performance. It is highly suitable for optical splitters. Applicable for PLC splitters with a maximum ratio of 2:32 or 2*2:16. The maximum number of SC adapters is 36 pcs, and the maximum number of pigtails is 36 pcs SC/PC -1.5 meters. Various optional sealing accessories for soft cables. The splitter and pigtail can be pre-installed, so only the cable needs to be connected on-site, which will shorten construction time and improve work efficiency.

  • Product Features
  • Product Specification
  • Applicable for Outdoor FTTH Splitting And Distribution
  • Sheath retention & central strength member termination system included.
  • Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack
  • Installation and reentry with a minimum of tools

PLC SplitterMax. 2.x32 Splitter - 1pc, 2x16 Splitter - 2pcs
SC Pigtails32pcs
Max Capacity48 Fibers (single Fusion)
Cable Diameter24mm, 17,5mm
Dimension450*230mm
