General Detail

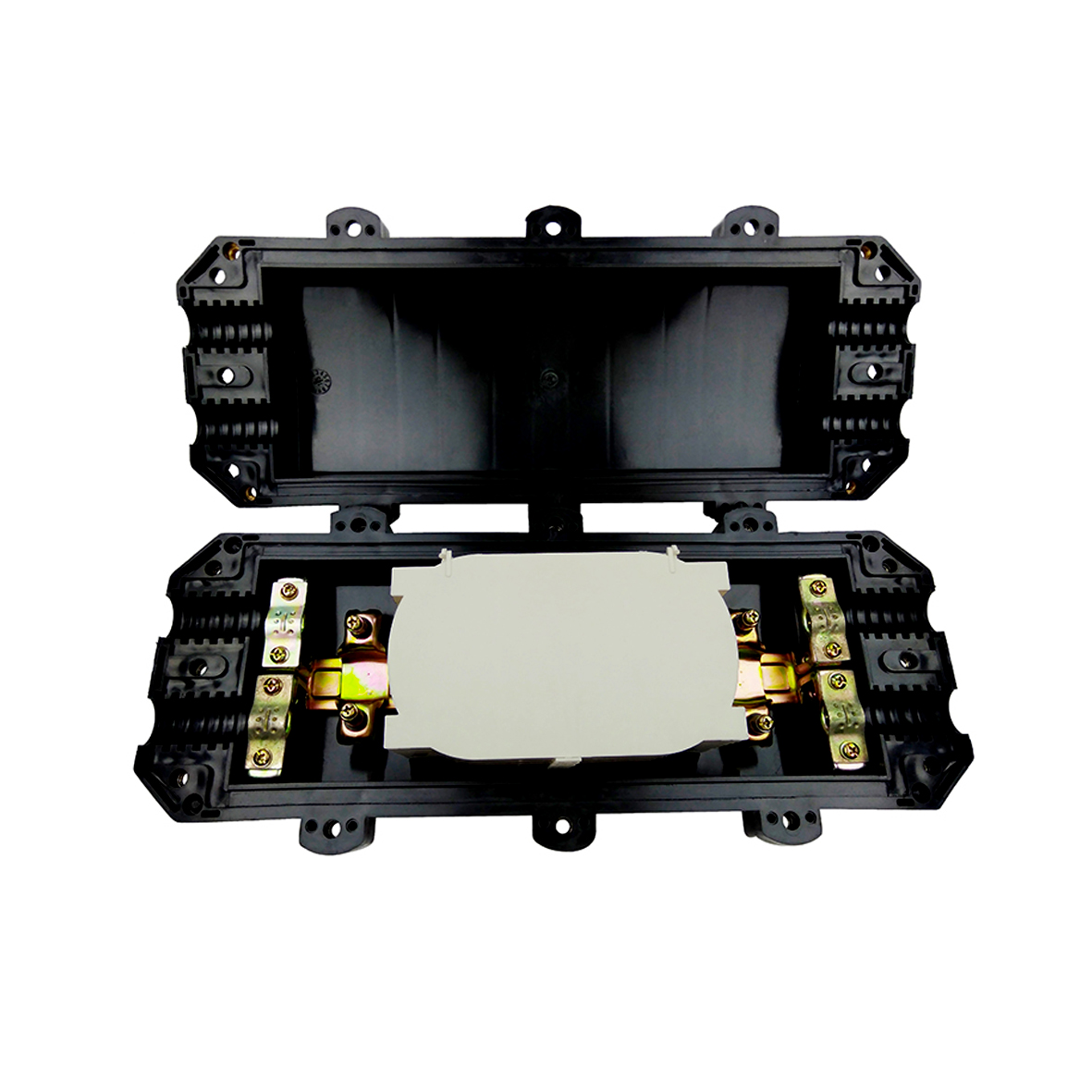

The horizontal (inline) fiber optic joint closure is made of high-quality engineering plastic. This closure features an advanced internal structural design, ensuring no fiber attenuation. The closure is spacious enough to coil and store the fiber. It is easy and quick to add or remove splice trays.
- Product Features
- Product Specification
- Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive.
- Made of material with good capability of outdoor environment resistance and high durability
- Having reliable cable fixing and grounding facilities.
- Using self-adhesive isolative tape and glue belt to seal.
- To use rotating method to connect fiber organizer cassette result in easy installation.
- Mechanical design suitable for installing, fiber splicing storage and cable connection.
Size | 555X240X123 (mm) |
Weight(kg) | 3.5 |
Suitable cable diameter | 8mm~23mm |
Maximum number of trays | 6 |
Capacity(cores) | 288 single fibers |
