General Detail

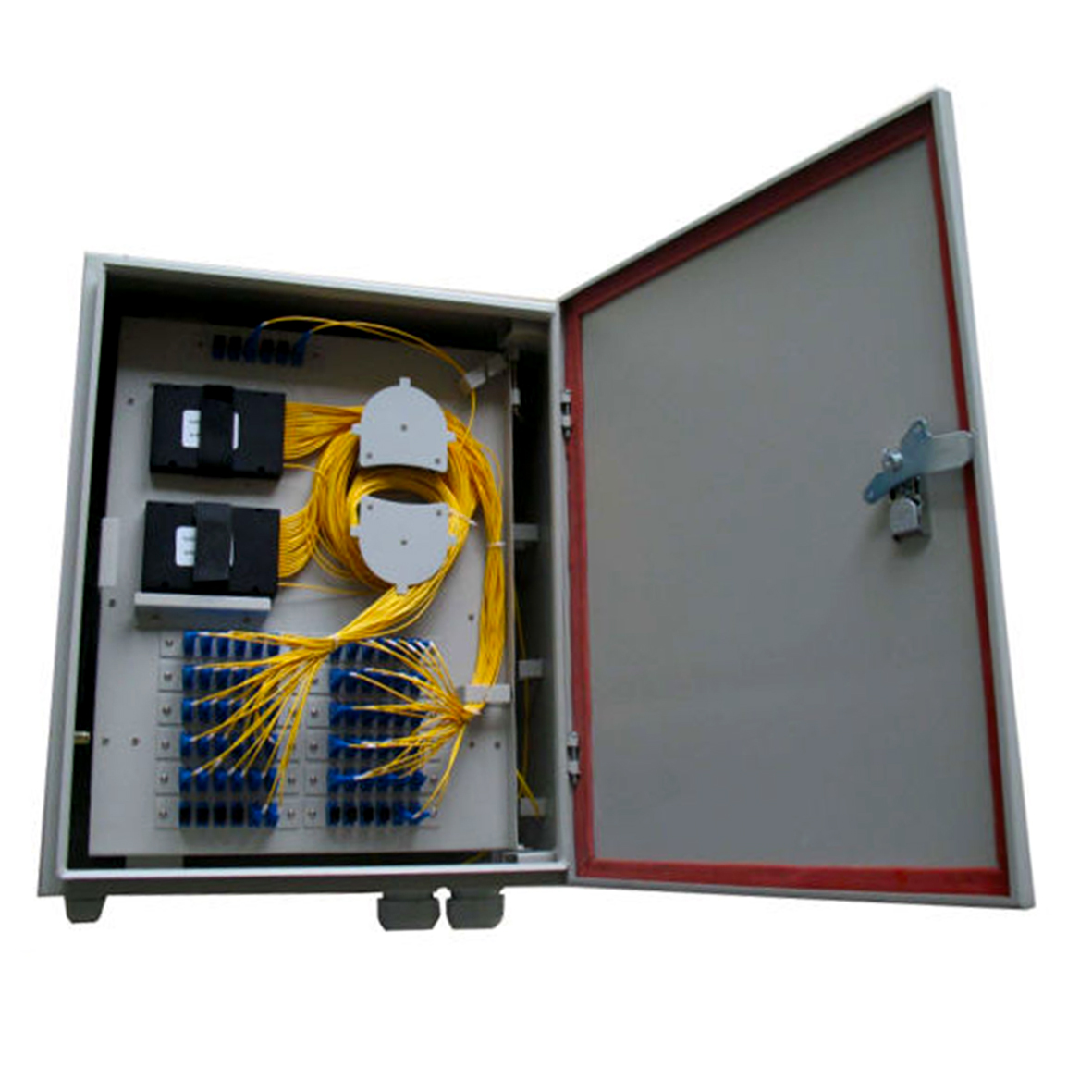

Fibered fiber access termination box is able to hold up to 72 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTH network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
- Product Features
- Product Specification
- High strength composite material (SMC) or engineering plastic injection molding, good mechanical performance, elegant appearance, sturdiness and durability.
- Suitable for indoor and outdoor , wall-mounted, pole, aerial installation.
- Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.
- FC,SC,and LC adapters available, modular design, convenient for fixation and maintenance.
- The mark is clear on each fiber connection and distribution .
- The door opening angle is greater than 120 degree for easy operation and maintenance.
- The splice tray can be taken down and put on the bench for splicing, convenient operation.
- The redundant fiber is wound and protected.
| Module Type | Double door open |
| Max Capacity | 72 Cores |
| Adapter Plate | LC FC SC ST |
| Material | Cold Rolled Steel |
| Color | White,Gray |
| Dimension | 400*380*130mm |
| Atmospheric pressure | 70KPa~106KPa |
| Operating wavelength | 1260-1650nm |
| Working Temperature | -40°C~+80°C |
