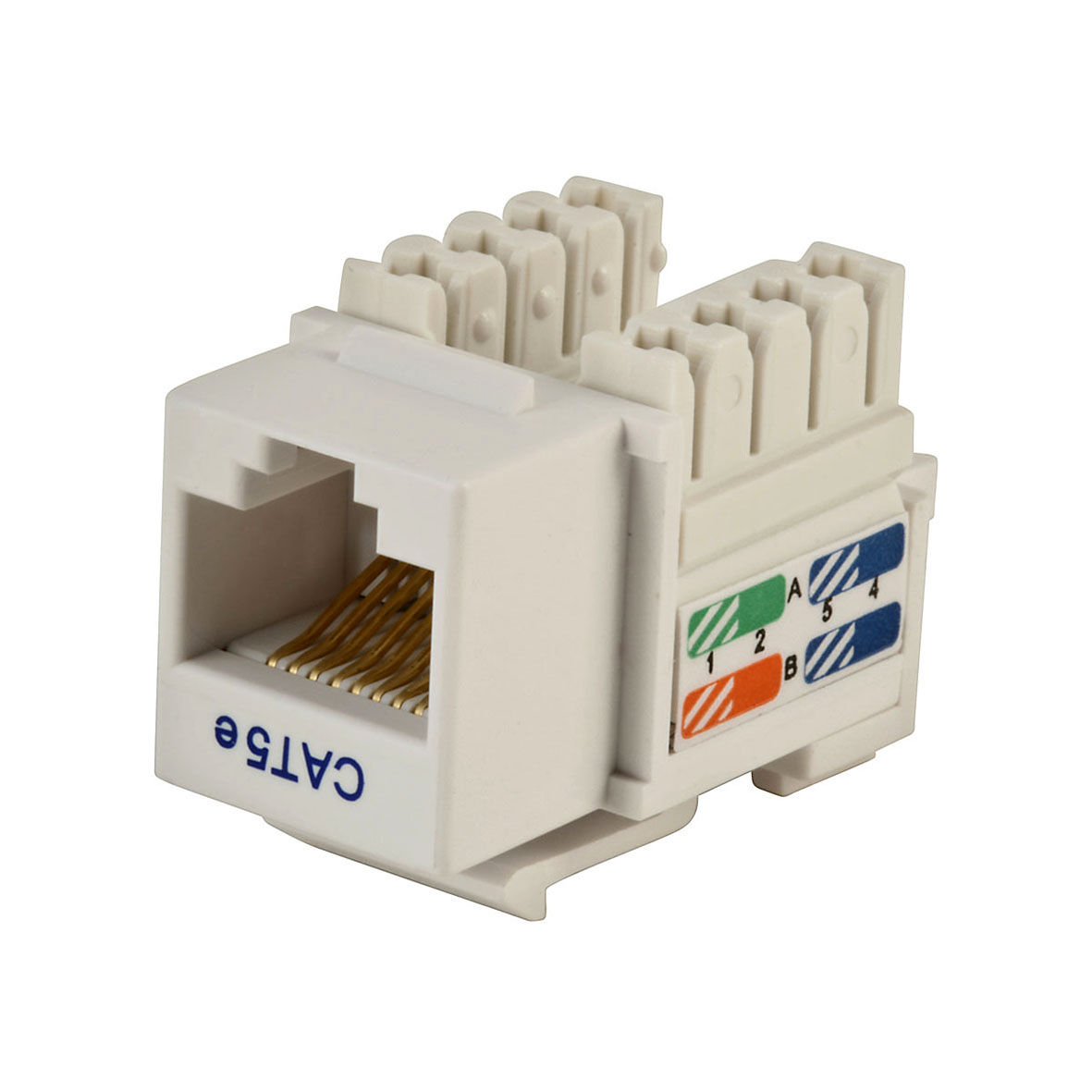

CAT 5E Modular Jack

General Detail

This series keystone jack work together with high speed cables, cords and panels to provide performance beyond proposes Category 5E standards.

  • Product Features
  • Product Specification
  • Housing: high temperature thermoplastic
  • Compact jack design, 8 positions and 8 conductors
  • Contact: phosphor bronze, phosphor bronze with 6 to 50u gold plate
  • Accept 22-26AWG solid with an insulation diameter of 0.4-0.6 mm
  • Easy to be terminated, low attenuation loss and high return loss
  • High reliability and superior performance
ColorWhite
Product Weight14 g
Connector Type1 - RJ-45 Female
