General Detail

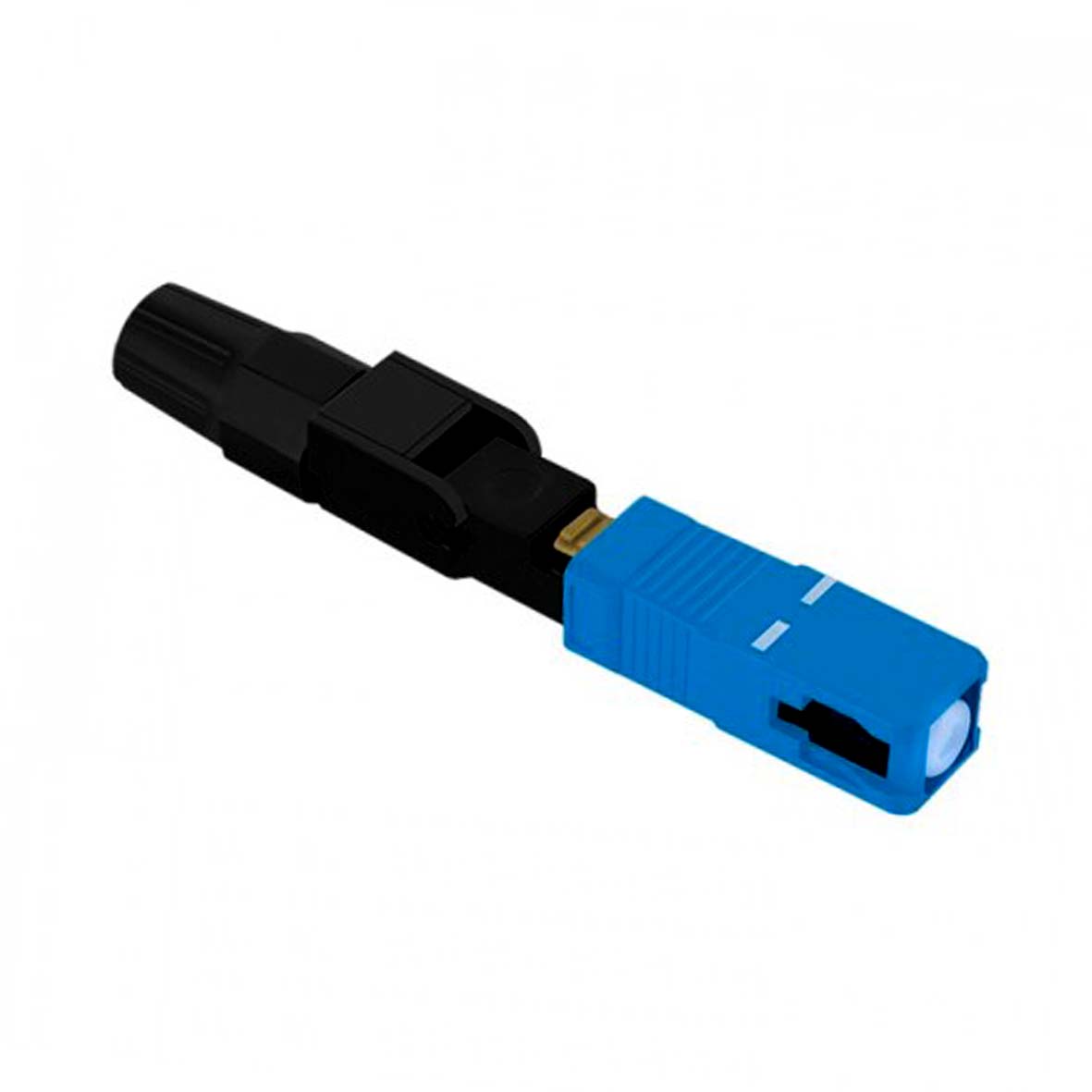

The fast connector is designed for high quality and high efficiency for installation.The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adopted fiber pre-installed structure. Could be reused, and convenient for field installation.
- Product Features
- Product Specification
- Factory-installed fiber stub.
- No epoxy and polishing required, No special tools needed when installed.
- Allows up to three re-termination result.
- Easily installed, Quick and easy fiber termination in the field.
- Only 30 seconds needed to learn the process of installation and making.
- Cost effective, Warranty: Two year.
- Fast connecting and repeat, No special tools needed when installed.
- Can be made on-site without splicing connectors.
- Eliminates cable excess length and pigtail splice storage.
- Can be installed and made repeatedly thus avoiding loss.
| Application | 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
| Optical Fiber diameter | SM(9/125), MM(50/125, 62,5/125) |
| Tight buffer diameter | 250 Micro m |
| Fiber mode | Single mode |
| Operation time | About 100s(no Fiber cut) |
| Insert loss | =< 0.3dB(1310nm & 1550nm) |
| Return loss | > 50db(PC), > 55db(UPC), > 65db(APC) |
