General Detail
The LC fiber cable uses a small form factor (SFF) connector and is ideal for high-density applications.
The LC fiber patch connector features a zirconia ceramic ferrule with an OD of 1.25 mm with either a PC or APC end, providing optimal insertion loss and return loss.
LC fiber patch connectors are used on mini-cordage with small diameters (1.6 mm/2.0 mm) as well as 3.0 mm cables.
LC fiber patch connectors are available in either assembly cable or one-piece connector types.
- Product Features
- Product Specification
• High return loss
• Low insertion loss
• Good interchangeability and duplication
• Made with high-quality ceramic sleeves

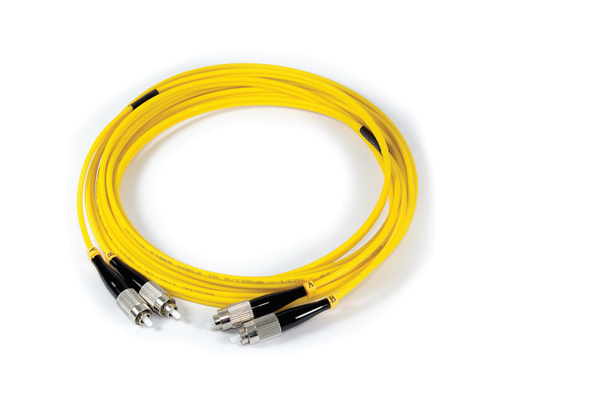

• Optical fiber patch cable FC applications
| Insert Loss | Single mode ≤0.3dB |
| Multi mode ≤0.3dB | |
| Return Loss | Single mode PC ≤-50 dB; UPC≤-55 dB; APC≤-60dB |
| Multi mode ≥20dB | |
| Color | Single mode Yellow |
| Multi mode Orange | |
| Interchangeable | ≤0.2dB |
| Inserts pulls out the number of times (time) | ≥1000 |
| Working Temperature | -40~+80 |
| Duplicated | ≤0,1dB |
