General Detail

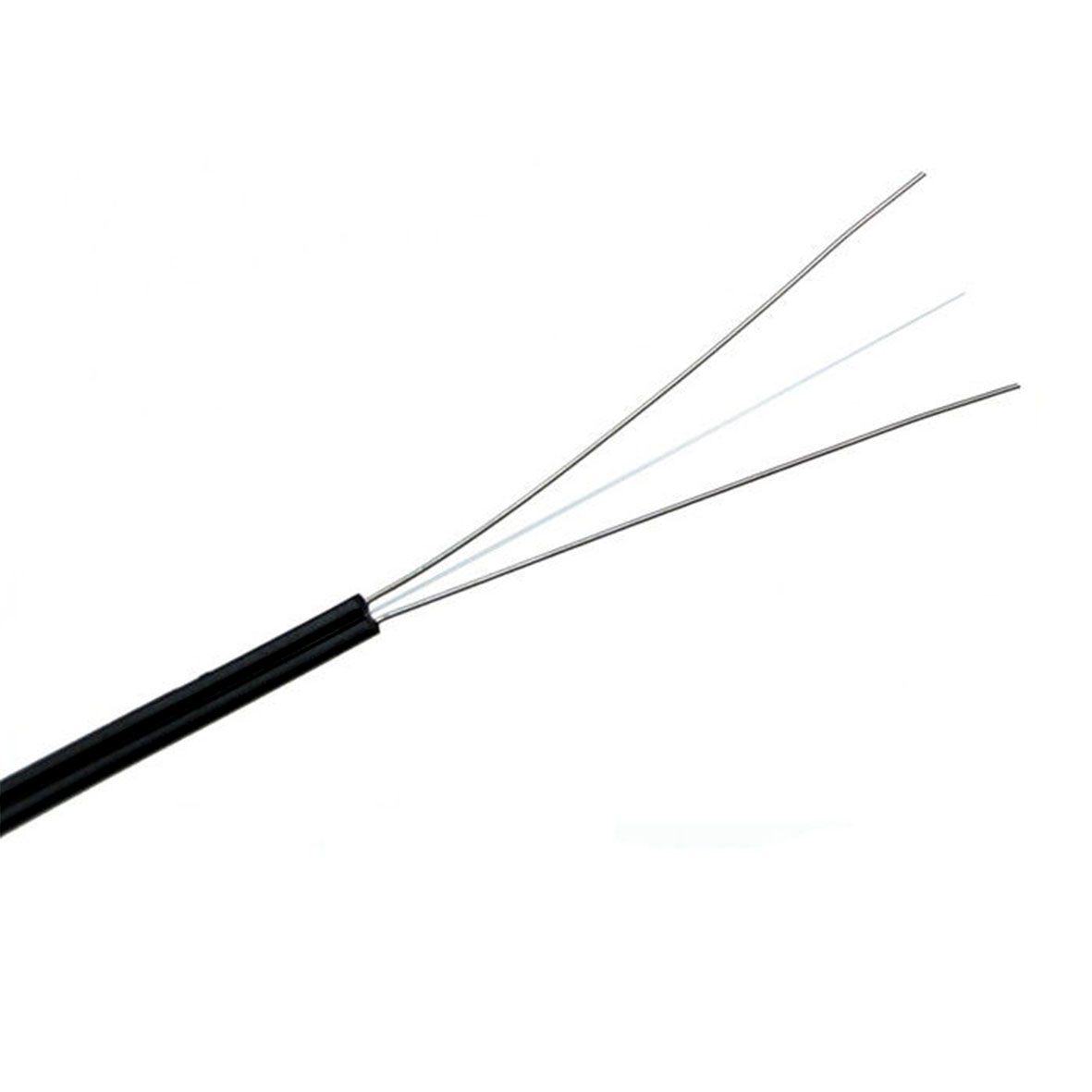

FTTH drop cables, as previously mentioned, are located on the subscriber end to connect the terminal of a distribution cable to a subscriber’s premises. They are typically small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Fiber optic drop cables are available in many different types. The three most commonly used fiber drop cables include flat drop cable, figure-8 aerial drop cable and round drop cable.
- Product Features
- Product Specification
- The optical fiber cable has small diameter,lightweight,low cost.low construction cost
- The optical fiber cable is suitable for mechanical splicing technology,fast,and flexible
- The optical fiber cable uses aromatic polyamide materials to be the strengthen material
- High-carbon steel wire should be used for Self-supporting strengthen device of optical cable, superior tensile properties contented
- Low dispersion and attenuation
- Proper design, precise control for fiber excess length and distinct stranding process render the
- Cable excellent mechanical and environmental properties
| Fiber count | 1-4 |
| Optical Fiber | G.657 |
| Two parallel Steel wire strength member | 0.45mm FRP |
| Cable diameter mm(±0.1) | (2.0±0.2)*(3.0±0.2) |
| Cable weight (Kg/Km) | 10.5+ |
| Tension (Long/Short Term) | 100/200 |
| Crush (Long/Short Term) | 1000/2200 |
| Min. Bending radius | 20times cable diameter |
| Temperature range | Storage -20°C to 70°C / Operation -20°C to 70°C |
