General Detail

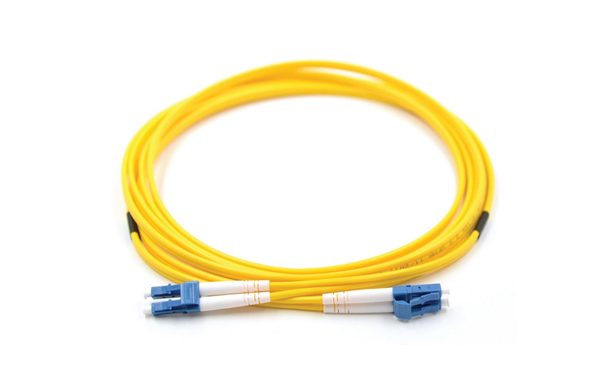

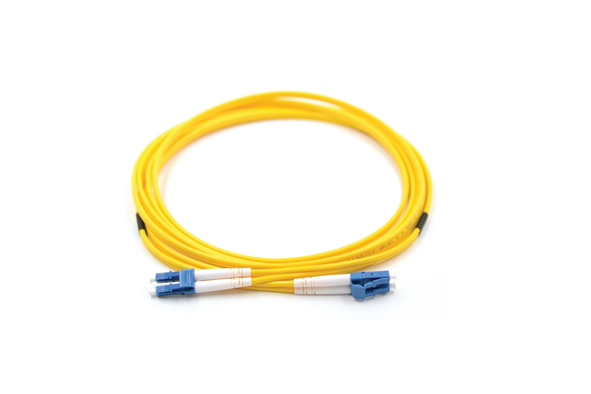

The LC fiber cable uses a small form factor (SFF) connector and is ideal for high-density applications.
The LC fiber patch connector features a zirconia ceramic ferrule with an OD of 1.25 mm with either a PC or APC end, providing optimal insertion loss and return loss.
LC fiber patch connectors are used on mini-cordage with small diameters (1.6 mm/2.0 mm) as well as 3.0 mm cables.
LC fiber patch connectors are available in either assembly cable or one-piece connector types.
- Product Features
- Product Specification
• Compact design, anti-pull
• RJ-45 style interface
• Low insertion loss and low back reflection
• Polarized and color-coded (TIA 568-A & ISO 11801)
• UL-rated plastic housing and boot
• High precision alignment
• Short connector & Behind the Wall (BTW) style boot
| Connectors | LC |
| Mean Insertion Loss | 0,2dB |
| Maximum Insertion Loss | 0,4dB |
| Connector Durability (500 matings) | <0,2 dB maks |
| Cable | 9 (SM)/50 (MM) |
| Cable Attenuation @ 23°C Typical | 3,5 dB/km (SM)/1,5 dB/km (MM) |
| Operating Temp Range | 0°C to 70°C |
| Storage Temperature Range | -10°C to 75°C |
